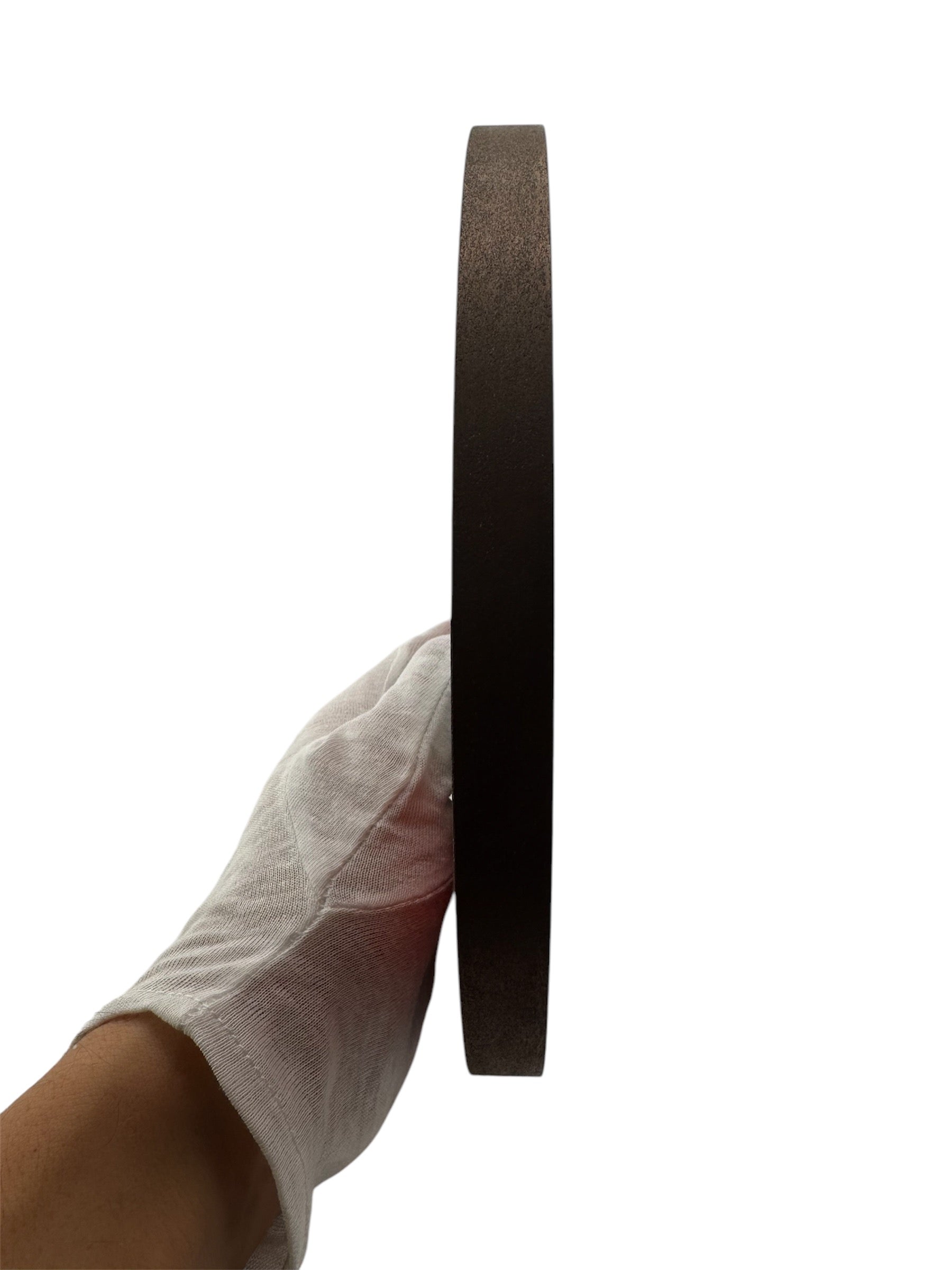

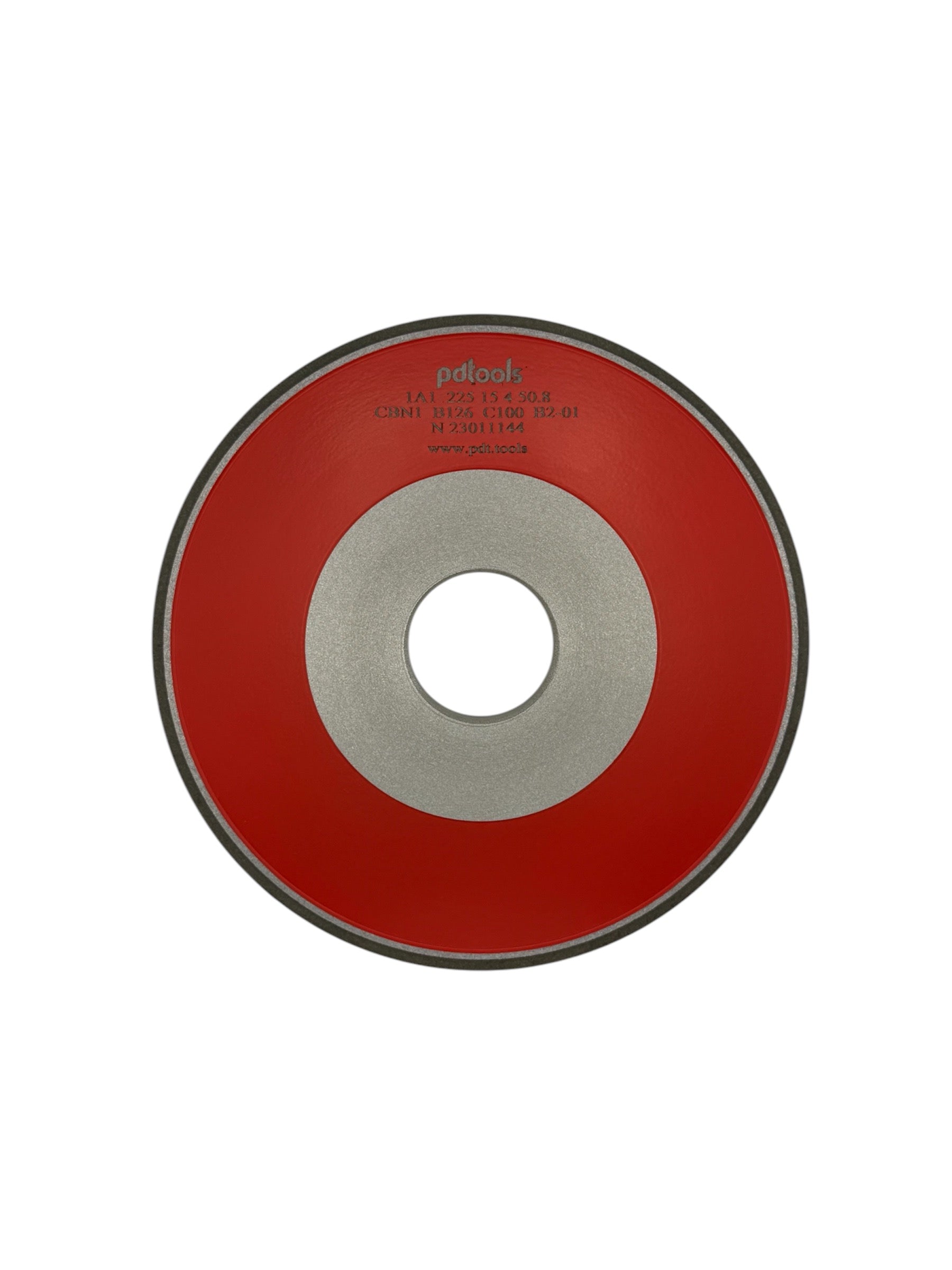

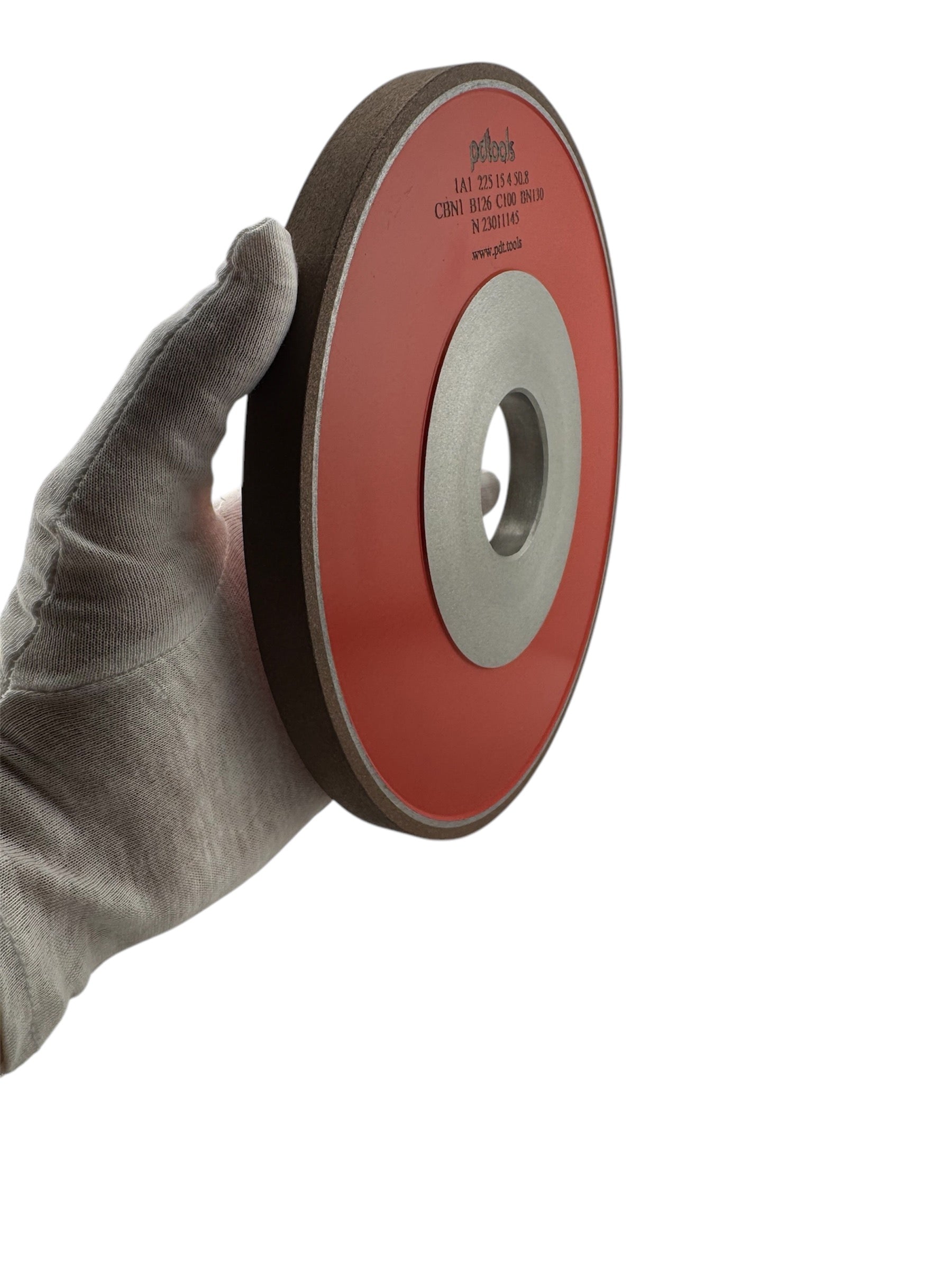

CBN grinding wheel 1A1 225-15-4-50.8 CBN B126 C100 B2-01

CBN grinding wheel 1A1 for flat surface grinding.

Specifications:

Diameter (D): 225mm(9'')

Thickness of diamond layer (T): 15mm(0.591'')

Height of diamond layer (X): 4mm(0.158'')

Mounting hole (H): 50.8mm(2'')

Grit size: B126 - 140 GRIT

Bond: Resin Standard bond

Cooling: Not necessary.

Speed: 1,700-2,970 rpm

• Used for machining of conical, cylindrical and flat surfaces, as well as cylindrical and conical apertures.

• Suitable for machining of cylindrical surface parts and surface ends in a single set-up.

• Effective for sharpening and finishing of High-Speed Steel (HSS).
